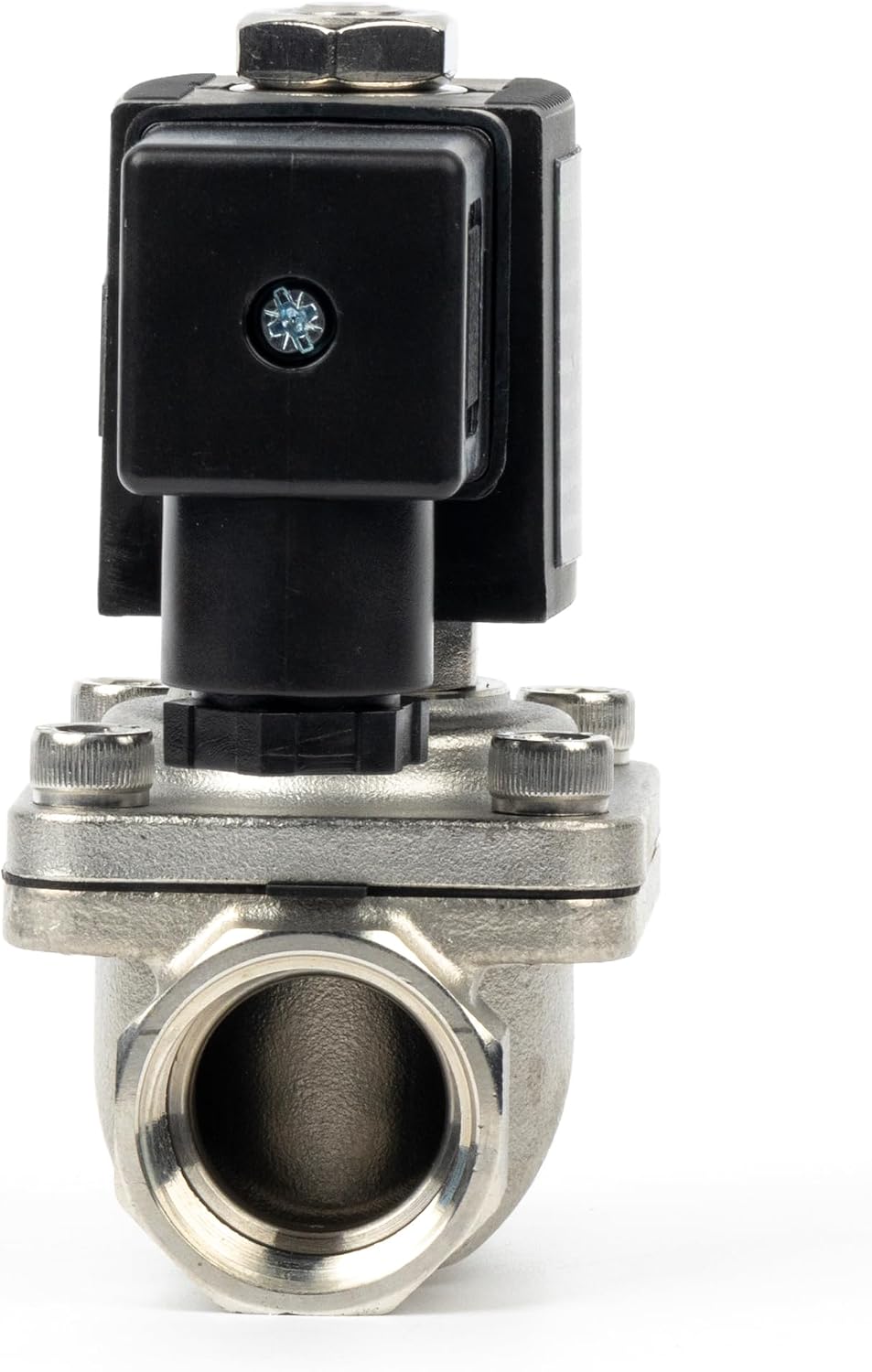

U.S. Solid 3/4 in Stainless Steel Solenoid Valve, AC 110 V, Normally Closed, FKM Seal, 9.3 Cv, Low-Pressure Start, Junction Box, Semi-Direct, for Water Gas and Oil
Product details
| Management number | 247465184 | Release Date | 2026/08/16 | List Price | US$19.47 | Model Number | 247465184 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- STAINLESS STEEL, DURABLE: A durable, leak-resistant stainless steel body takes higher pressure and temperature and suits water, including drinking water, plus gasoline, diesel, kerosene, gas, air, and oils
- FAST RESPONSE, OVER 1 MILLION CYCLES: Opens or closes in under 1 second when powered on or off for instant flow control, rated for over 1 million cycles under proper maintenance
- LOW-PRESSURE START FROM 0.1 BAR: A semi-direct design starts under minimal pressure, as low as 0.1 bar, so it works on low-pressure and near-zero-pressure lines that stall many pilot valves
- FKM SEAL TO 150 C: The FKM (fluoroelastomer) seal resists high temperatures over -10 to 150 °C (14 to 302 °F) and corrosive fuels, oils, and chemicals where NBR or EPDM seals would swell
- REDESIGNED JUNCTION BOX SERIES: This latest semi-direct series is redesigned for efficiency; a sealed junction box protects the wiring, passing 9.3 Cv up to 10 bar (145 psi), for irrigation, RO, home brewing, and fuel control
| UPC | 888107110620 |
|---|---|
| ASIN | B0CXX83N8V |
| Size | 0.75 Inch |
| Brand Name | U.S. Solid |
| Unit Count | 1 Count |
| Valve Type | normally closed solenoid valve |
| Thread Size | 3/4 Inch |
| Thread Type | NPT |
| Manufacturer | U.S. Solid |
| Model Number | USS2-01014 |
| Material Type | Stainless Steel |
| Connector Type | Junction Box |
| Exterior Finish | Brass, Stainless Steel |
| Number of Items | 1 |
| Number of Packs | 1 |
| Number of Ports | 2 |
| Maximum Pressure | 10 bar |
| Specification Met | CE |
| Included Components | Valve |
| Inlet Connection Size | 0.75 inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.75 inches |
| Outlet Connection Type | Electrical |
