QSFPTEK Mini Unmanaged 1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet to Fiber Media Converter, AC 100V~240V or DC 5~12V Optional

Mini Gigabit Ethernet Network Media Converter (1x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP) This fiber to Gigabit Ethernet media converter is configured with a 1x 10/100/1000Base-T RJ45 port and a 1000Base-X SFP port. It is used to contact the RJ45 port switch with the SFP port switch by transferring the copper network to a fiber network and extending the transmission distance of the copper network system at speeds of 1Gbps. Media converters are widely used in structured cabling systems to interconnect fiber optic cabling systems with existing copper cables. The fiber optic media converter is compatible with a wide range of 1G SFP transceivers, including 1000BASE-SX/LX, BiDi SFP, CWDM SFP, etc. All of the optical transceivers are available at QSFPTEK.

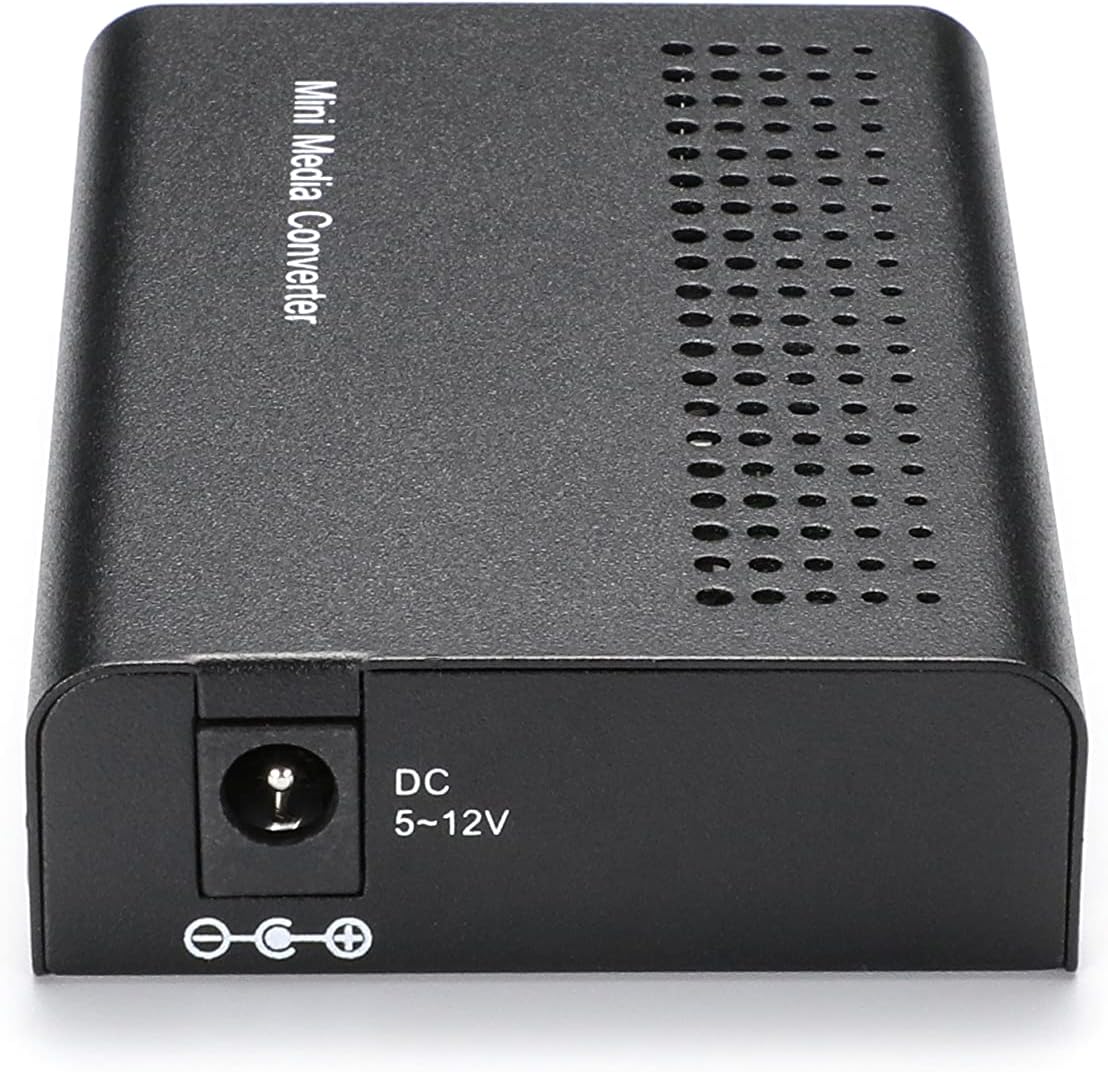

• Mini Size: Compact size designed dimensions 0.79''x2.36''x3.54'' (20x60x90mm), with heat disspation through the housing surface, better than other metal materials. Support 1U 12 Slots Chassis & Stand-alone Use
• Fiber Port: 1x RJ45 Port, 1x 10M/100M/1000M SFP Port, supports Full/Half Duplex auto-negotiation and MDIX auto-crossover.
• Fiber Transceiver Performance: Equiped with high-quality chip to ensure stability and Ultra-low time-delay data transmission. Complies with IEEE 802.3/802.3u/802.3z/802.3ab, 10/100/1000Base-TX/FX.
• Media Converter Feature: Support IEEE 802.3x Flow Control, LFP/ALS Function & FX Speed are Optional. Equipped with LED Indicates Diagnostic & DIP-switch Configurations Status
• Fiber Port: 1.25Gbps, support Gigabit Ethernet. Cable Type: UTP/STP Cat.5e for 100 meters.
