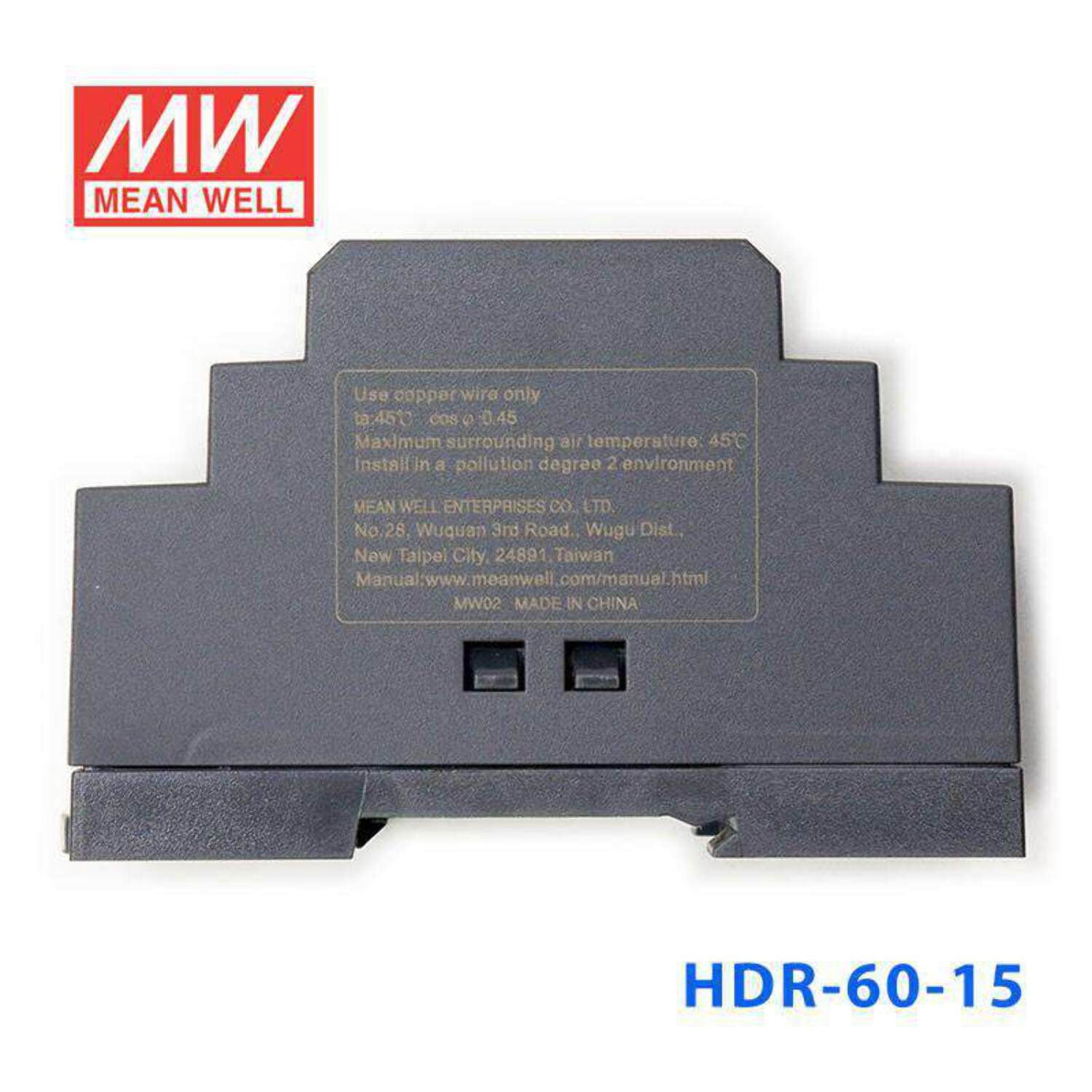

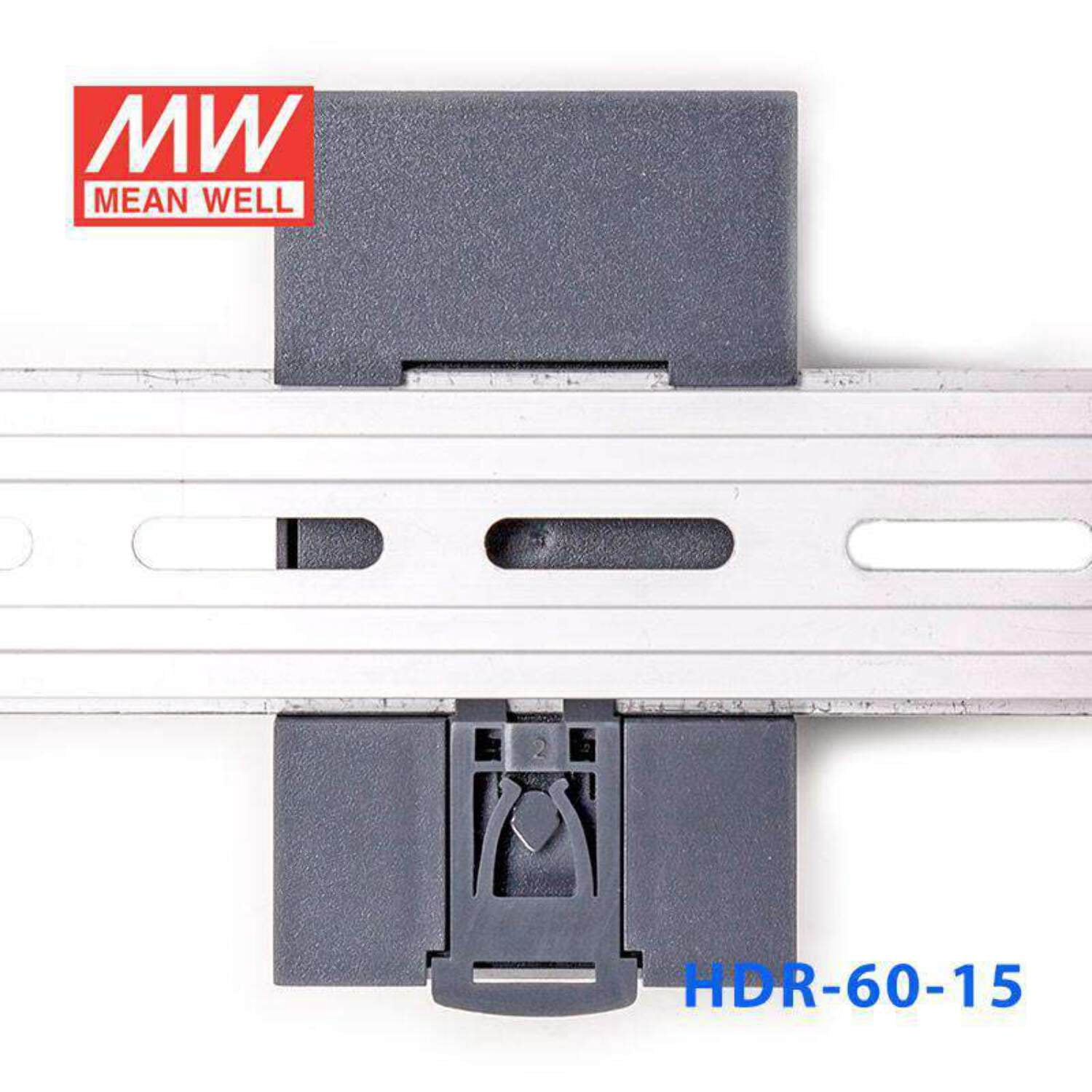

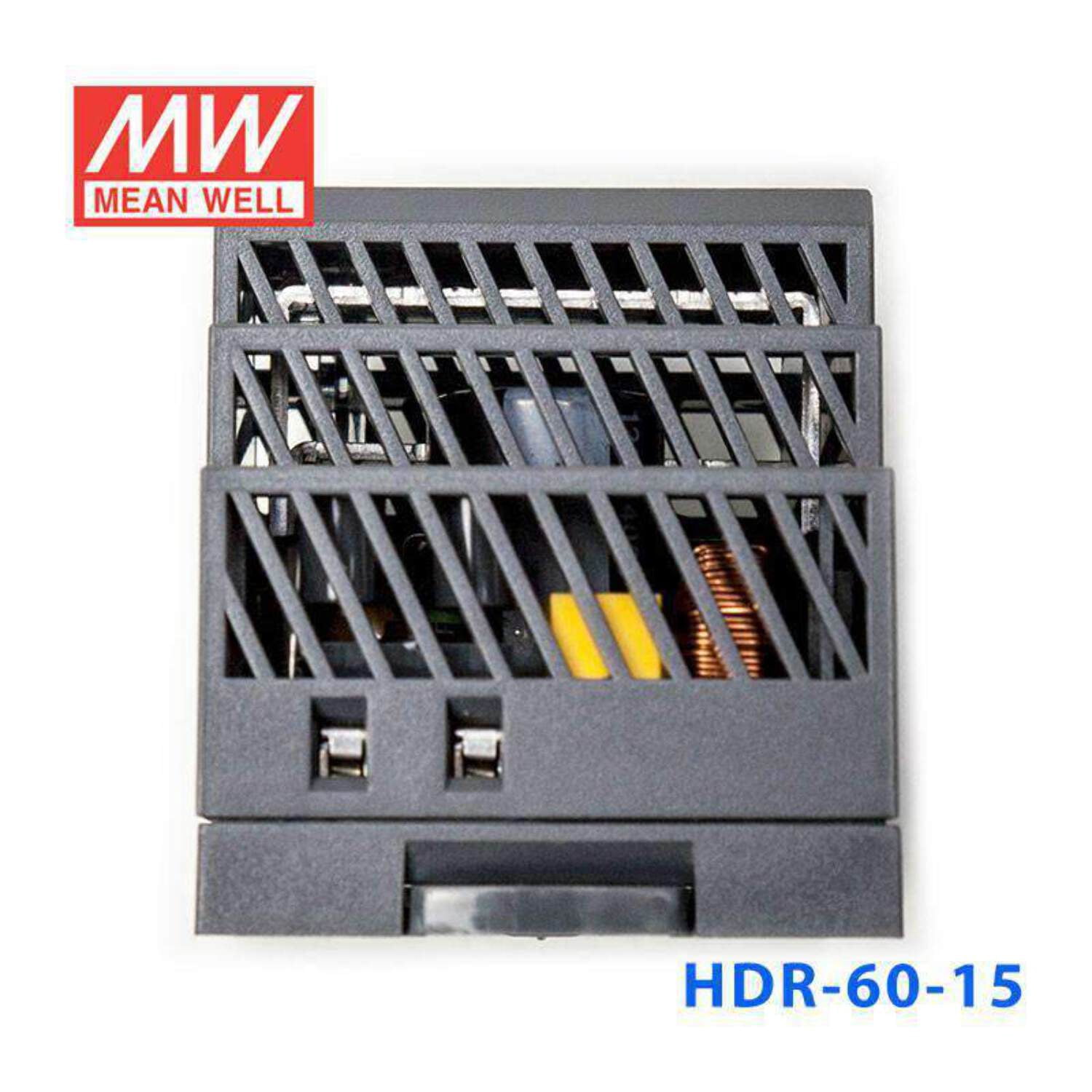

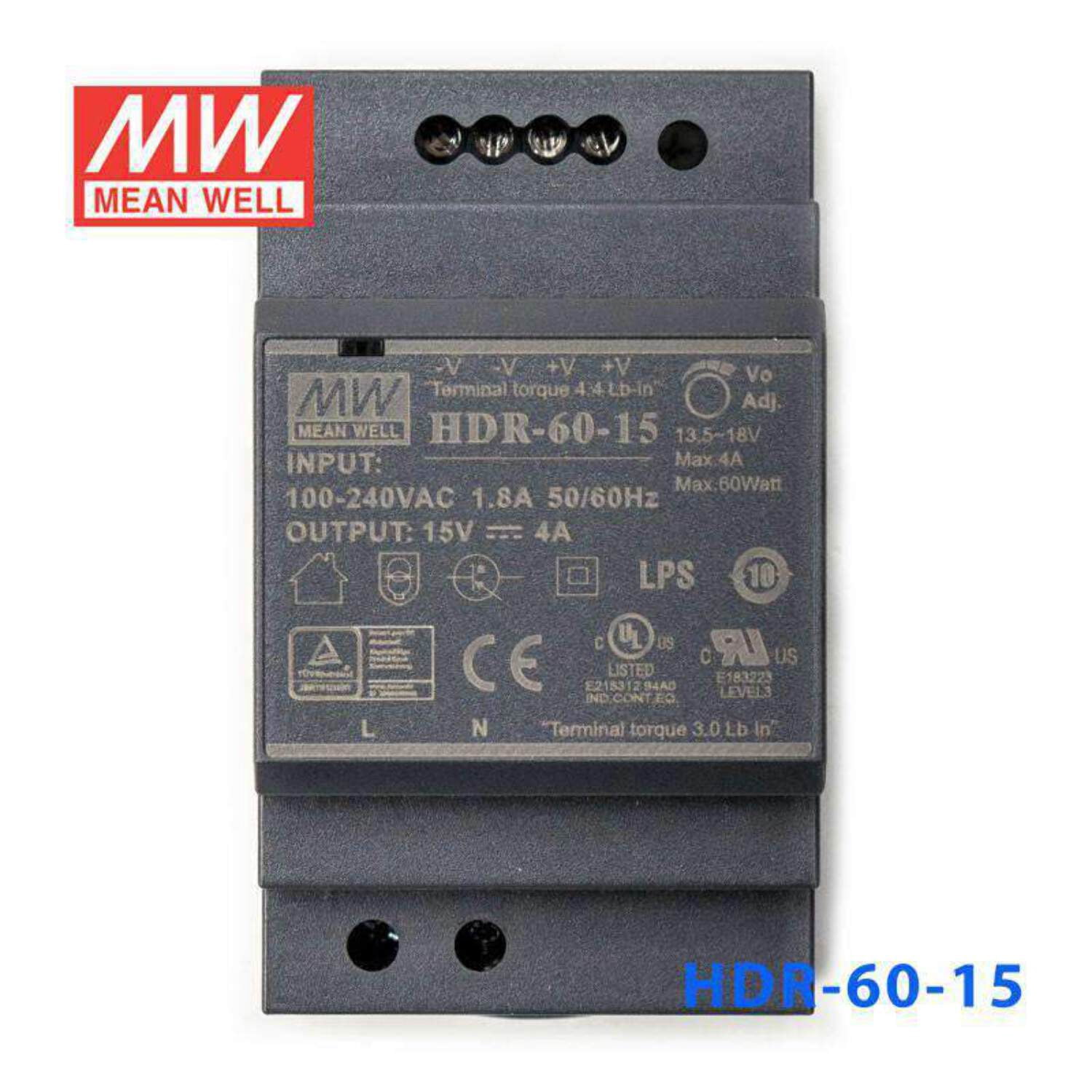

Mean Well HDR-60-15 Ultra Slim Step Shape Power Supply 60W 15V - DIN Rail

<em></em> Features<table><tbody><tr><td>Universal AC input / Full range</td></tr><tr><td>Installed on DIN rail TS35 / 7.5 or 15</td></tr><tr><td>Protections: Short circuit / Overload / Over voltage</td></tr><tr><td>No load power consumption &lt;0.3W</td></tr><tr><td>Ultra slim design with 52.5mm(3SU) width</td></tr><tr><td>Isolation class II</td></tr><tr><td>Cooling by free air convection</td></tr><tr><td>LED indicator for power on</td></tr><tr><td>3 years warranty</td></tr></tbody></table><br><em></em> General Specification<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>85~264VAC; 120~370VDC</td></tr><tr><td><strong>AC inrush current</strong></td><td>Cold start 30A at 115VAC, 60A at 230VAC</td></tr><tr><td><strong>DC adjustment range</strong></td><td>±10% rated output voltage</td></tr><tr><td><strong>Overload protection</strong></td><td>110%~145% constant current limiting, auto-recovery</td></tr><tr><td><strong>Over voltage protection</strong></td><td>115%~135% rated output voltage</td></tr><tr><td><strong>Setup, rise, hold up time</strong></td><td>500ms, 50ms, 30ms</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P:4kVAC</td></tr><tr><td><strong>Working temperature</strong></td><td>-30~+70°C (refer to output derating curve)</td></tr><tr><td><strong>Vibration</strong></td><td>10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes</td></tr><tr><td><strong>Safety standards</strong></td><td>UL508, UL,IEC 62368-1, EN61588-1,2-16</td></tr><tr><td><strong>EMC standards</strong></td><td>EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11</td></tr><tr><td><strong>Connection</strong></td><td>I/P: 2 poles, O/P: 4 poles screw DIN terminal</td></tr><tr><td><strong>Dimension (LxWxH)</strong></td><td>52.5x90x54.5</td></tr><tr><td><strong>Packing</strong></td><td>60pcs / 12.4kg</td></tr></tbody></table>
