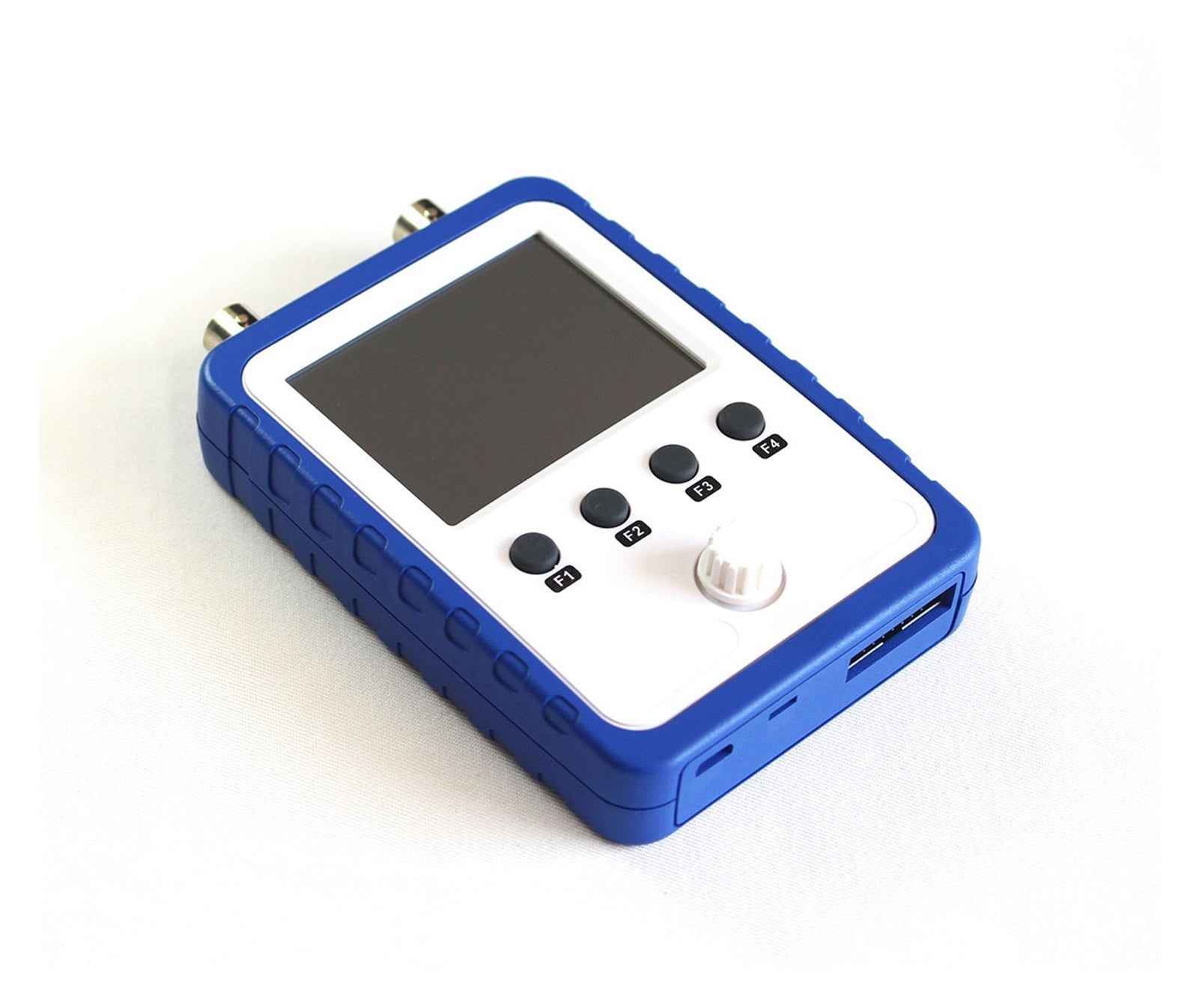

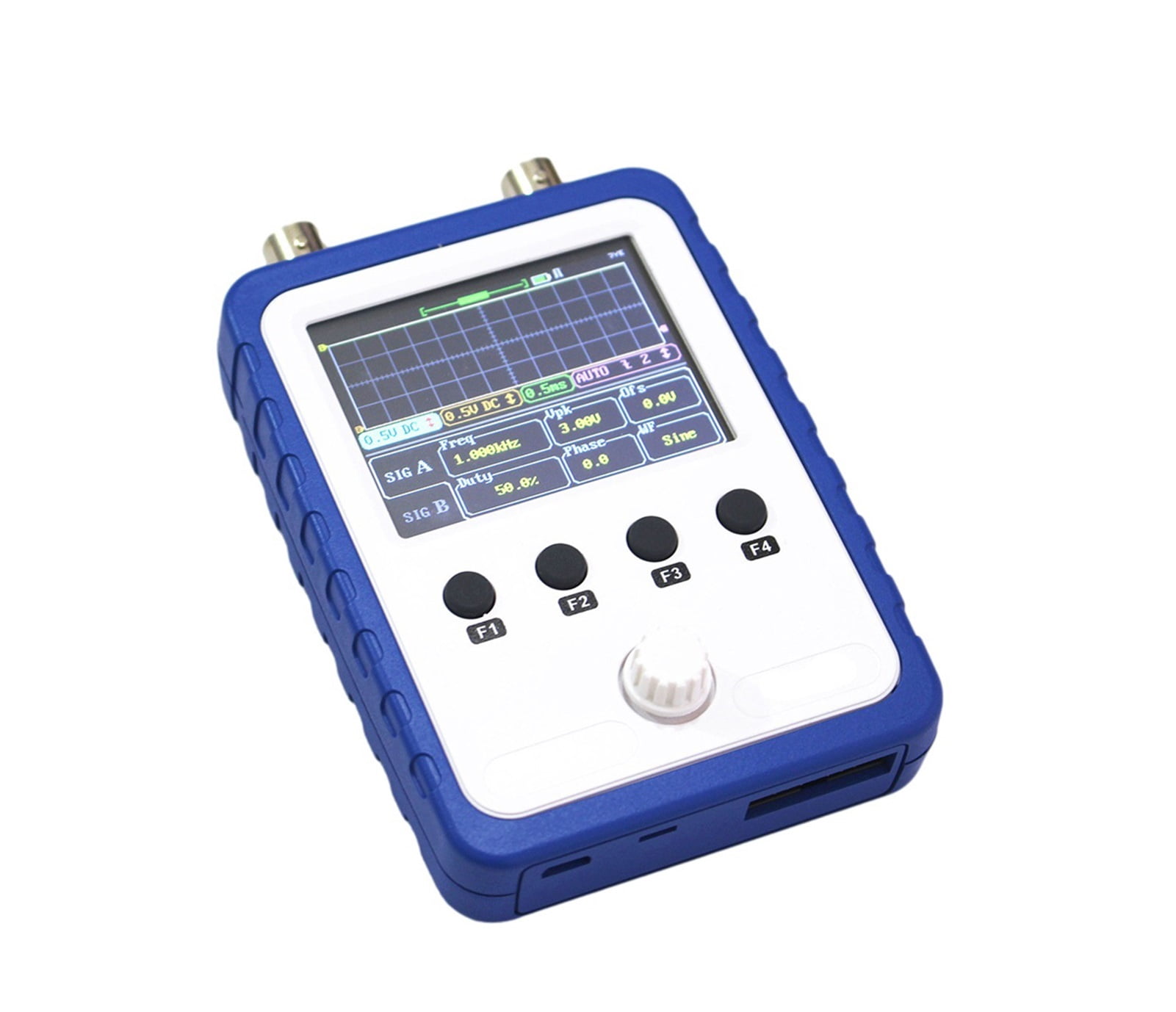

Handheld Dual Channel Digital Oscilloscope 2.4 Inch Touch Screen Build In Battery + 2pcs P6020 Probe

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• Features
• No. of Channels: 2
• Bandwidth: 0 200KHz per channel
• Sensitivity range: 5mV/DIV 20V/DIV (using x1 probe)
• Maximum input voltage: 50Vpk (using x1 probe)
• Maximum real time sampling rate: 1MS/s
• Time Base range 10us/DIV 500s/DIV
• X-Y Feature: Yes
• Built-in 0 20KHz (sine) dual channel DDS function generator
• Resolution: 320 x 240 Color
• Size: 2.4
• Touch panel: Yes
• Battery or USB powered
• Fully contrallable via serial connection
• General
• 2.4" 320x240 color
• Touch panel operation
• Y-X mode available
• Built-in 2-channel DDS function generator
• Light weight and portable
• Vertical
• Number of Channel: 2
• Analog Bandwidth: DC 200KHz
• Sensitivity: 5mV/Div - 20V/Div (with x1 probe)
• Sensitivity error: < 5%
• Resolution: 12-bit
• Input Impedance: 1M ohm / 25pF
• Maximum Input Voltage: 50Vpk
• Coupling: DC, AC
• Horizontal
• Max Real-time Sampling Rate: 1Msps (per channel)
• Timebase: 10us/Div - 500s/Div
• Record Length: 1024 points
• Trigger
• Trigger Modes: Auto, Normal, Single
• Trigger Types: Rising/falling edge
• Trigger Position: 1/2 of buffer size
• Trigger Source: Ch1, Ch2, External
• Maximum external trigger voltage: 15V
• External trigger threshold: LVTTL
• Function Generator
• Number of channel: 2
• Waveform type: Sine, Square, Saw-tooth, Stair
• Frequency range: DC 20KHz (Sine)
• Amplitude range: 0 3V (peak value)
• Offset: 0V or +3.3V
• Duty Cycle: 0 100%
• Phase: -360 360 degree
• Power Supply
• Powered on 3.7V Li-ion battery or USB
• Current consumption: ~300mA @ 3.7 5V
• Internal batter charger (optional)
• Automatic power off on battery
• Battery running time: Appr. 3hrs (when fully charged)
• Other Features
• Y-X mode
• On-screen measurement
• Save / recall up to 4 captures
• Serial output of captured data
• Serial port format: LVTTL, 115200bps, 8N1
• Built-in 1KHz/3.3V test signal
• [NEW] Complete serial control interface
• Physical
• Dimension: 115x72x30mm
• Weight: 0.29KG
• Package include
• 1x oscilloscope (fully assembled and tested)
• 2x BNC x1/x10 selectable probes
