17" Roll Laminator Machine Single-Sided and Double-Sided Laminating Equipment 110V

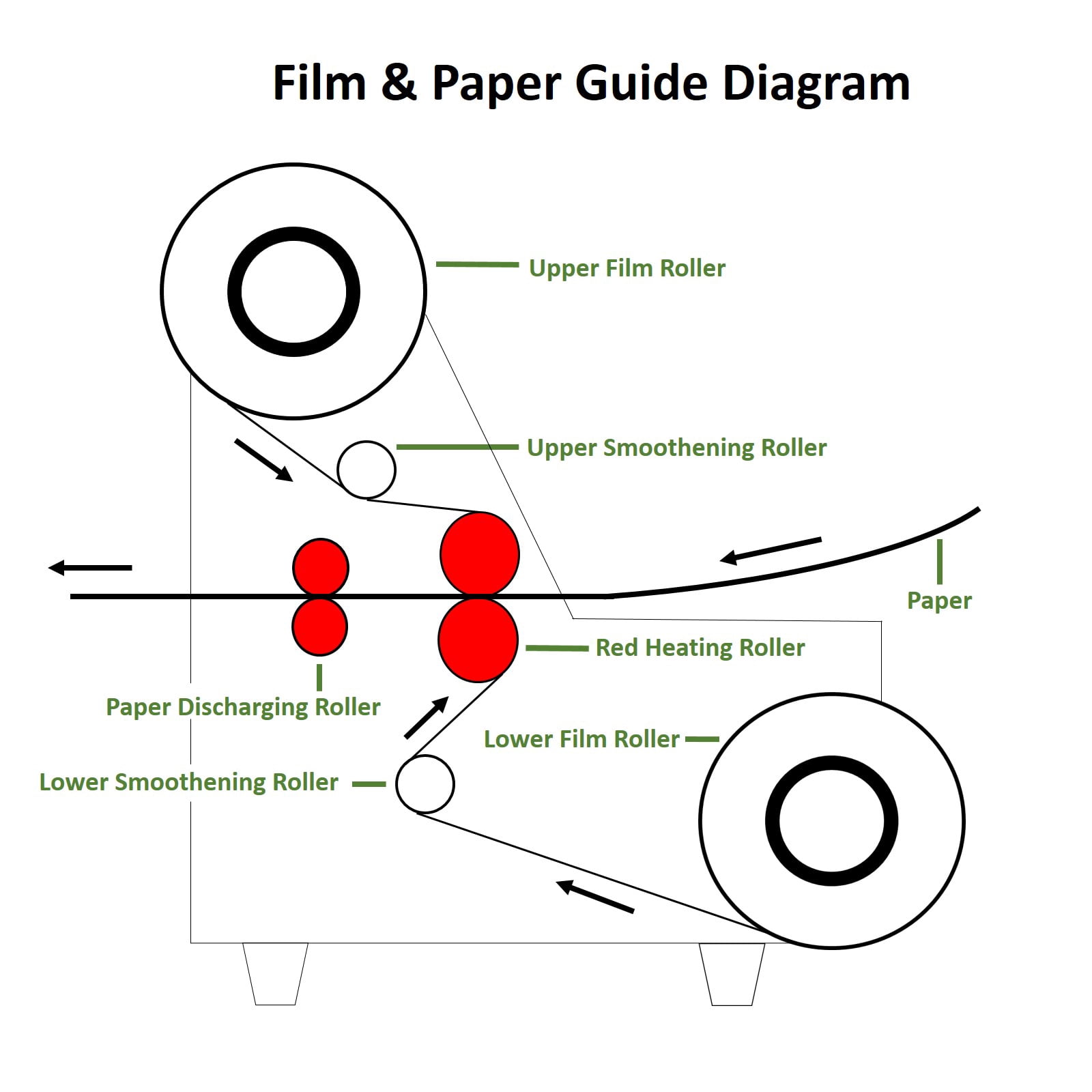

<p>Introduction:<br>The laminating machine is a professional device for attaching membranes to the surfaces of various materials such as paper sheets, pictures and cards. By means of the single-sided and double-sided laminating technology and temperature control operation, the membranes and materials are combined together, the effects of water resistance, stain prevention, fading resistance and wear resistance are achieved, and the visual quality is also improved.<br>Attention:<br>Please ensure that the power supply should comply with the nameplate on the machine.<br>Do not use the machine in a damp or humid environment. Use it in a correct and well ventilated location at the temperature of 2-40˚C and the humidity of 35-85%.<br>Do not touch red heating rollers at high temperatures to avoid scalds. Please wear protective gloves to operate.<br>Do not allow young children or non-professionals to operate the machine.<br>Keep hands, clothing and tools away from moving parts while the machine is in operation.<br>Please contact the after-sales service personnel if the machine has a fault or needs to be repaired.<br>Operation Method:<br>Install the film rolls as required according to the guide diagram. Note: Please pay attention to distinguish the basic side from the adhesive side of the film in the using process.<br>Connect the machine to the 110V power supply, turn on the power switch, set the required temperature, and select the laminating mode. Note: The laminating temperature can be set within the range of 80-100 DEG C.<br>After reaching the required temperature, press the ‘Up’ button, manually fed the to-be-laminated materials onto the paper feeding platform and start to conduct laminating operation automatically.<br>Discharge the finished product from the paper discharging rollers.<br>Press the ‘Stop’ button to stop laminating, turn off the power switch and disconnect the power supply.<br>Application:<br>The 17'' laminating machine is compact in structure and small in size, can adapt to various application environments and can be widely applied to different places, such as photo and text shops, DIY studios, photo studios, training institutions, offices and print shops. It is the best choice for customers with laminating demands.<br><br>Parameters:<br>Model: V480<br>Laminating Speed: 1.1M/MIN<br>Maximum Laminating Width: 450MM(17.72 Inch)<br>Laminating Weight: 80-400GSM<br>Maximum Laminating Temperature: 160˚C<br>Film Core Size: 1 Inch<br>Laminating Mode: Single-Sided and Double-Sided Laminating<br>Maximum Power Consumption: 800W<br>Power: 110V 60HZ<br>Product Size: 62.5x20.5x21CM(24.61x8.07x8.27 Inch)<br>Net Weight: 7.8KG(17.2LB)<br><br>Items Included: 122120-EnzT<br>450MM/17" Roll Laminator Single-sided &amp; Double-sided Laminating Machine 110V</p>

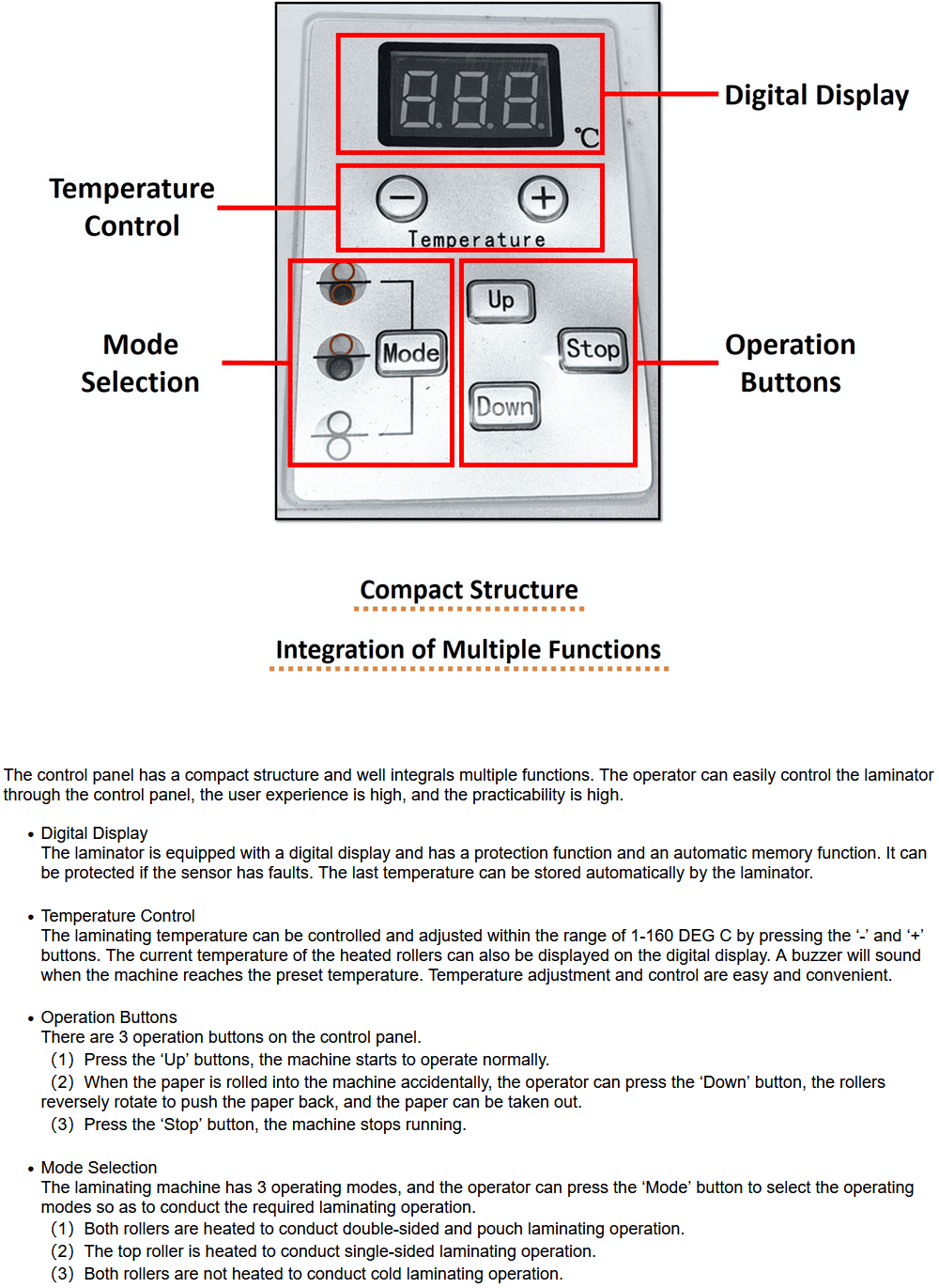

• The control panel has a compact structure and well integrals multiple functions.
• The operator can easily control the laminator through the control panel, the user experience is high, and the practicability is high.
• The laminator is equipped with a digital display and has a protection function and an automatic memory function.

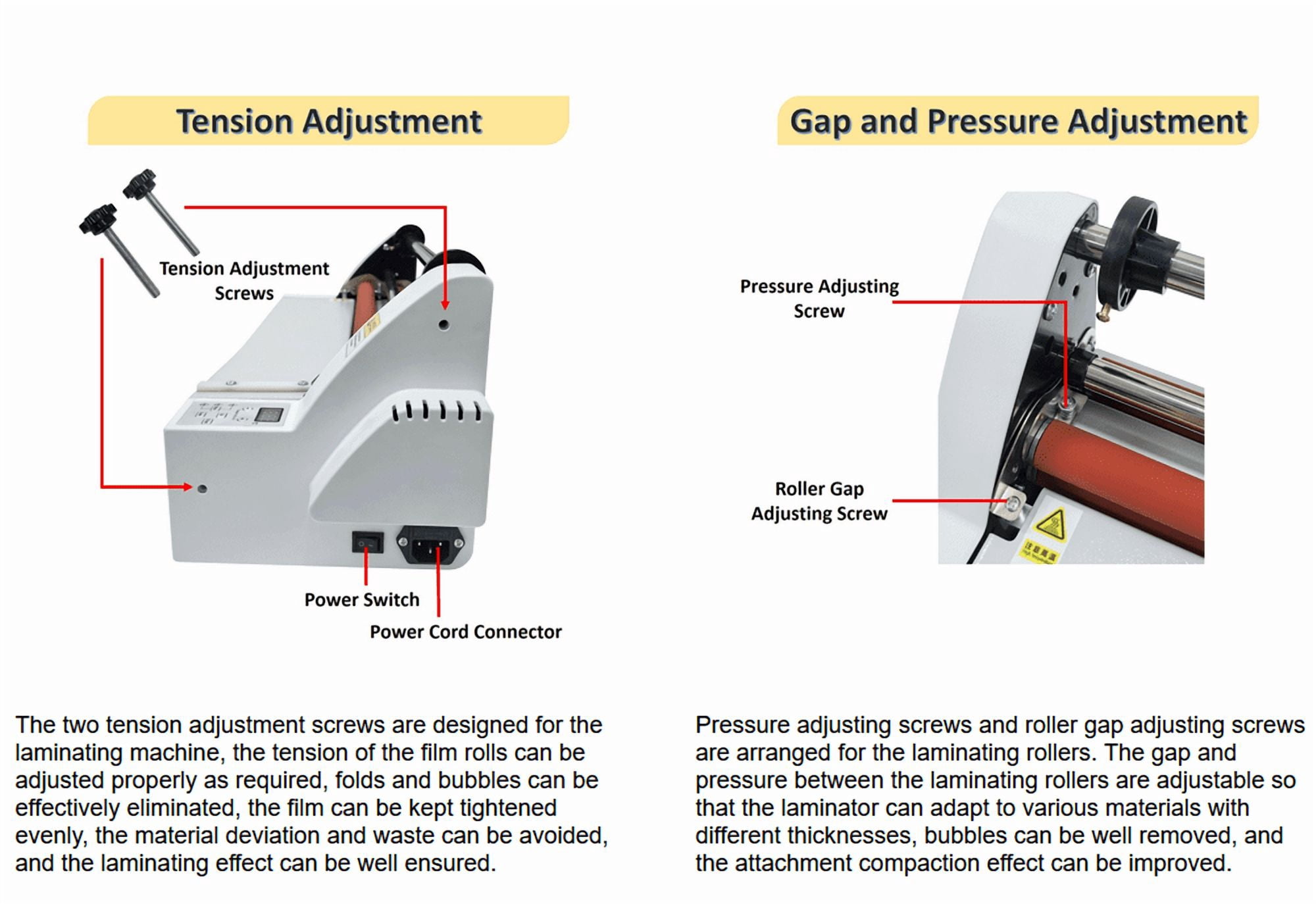

• The two tension adjustment screws are designed for the laminating machine, the tension of the film rolls can be adjusted properly as required, folds and bubbles can be effectively eliminated, the film can be kept tightened evenly, the material deviation and waste can be avoided, and the laminating effect can be well ensured.
• The 17" laminating machine is compact in structure and small in size, can adapt to various application environments and can be widely applied to different places, such as photo and text shops, DIY studios, photo studios, training institutions, offices and print shops. It is the best choice for customers with laminating demands.
