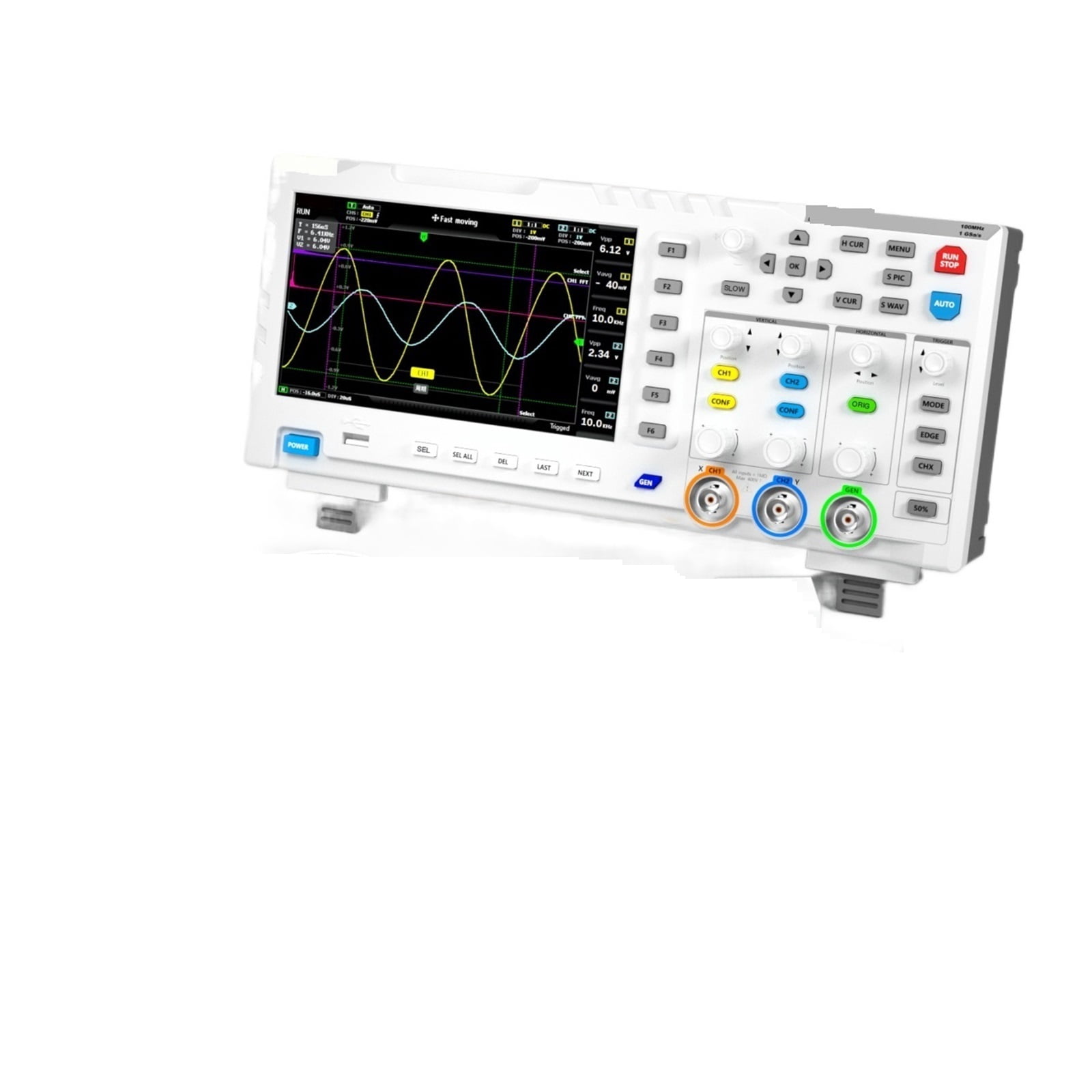

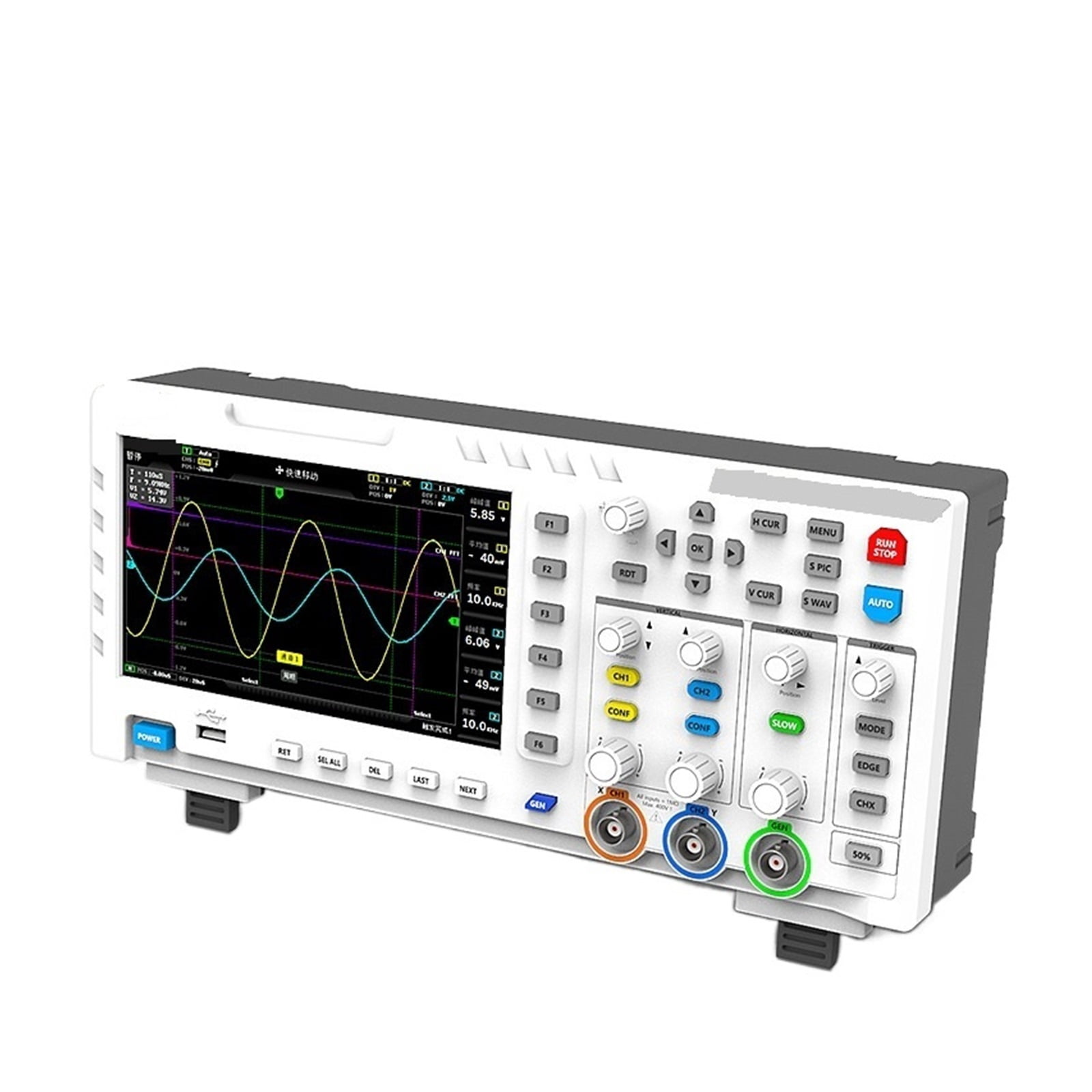

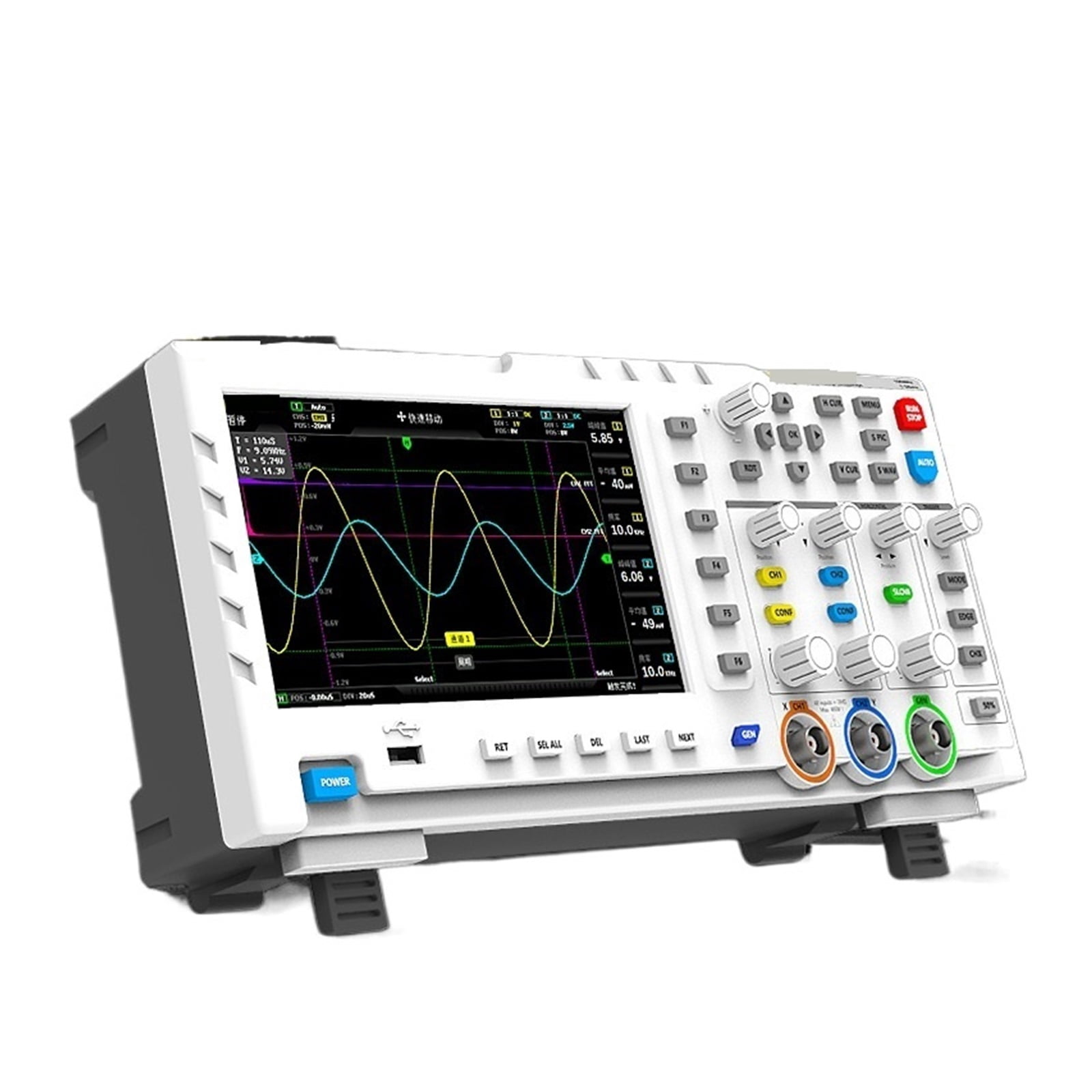

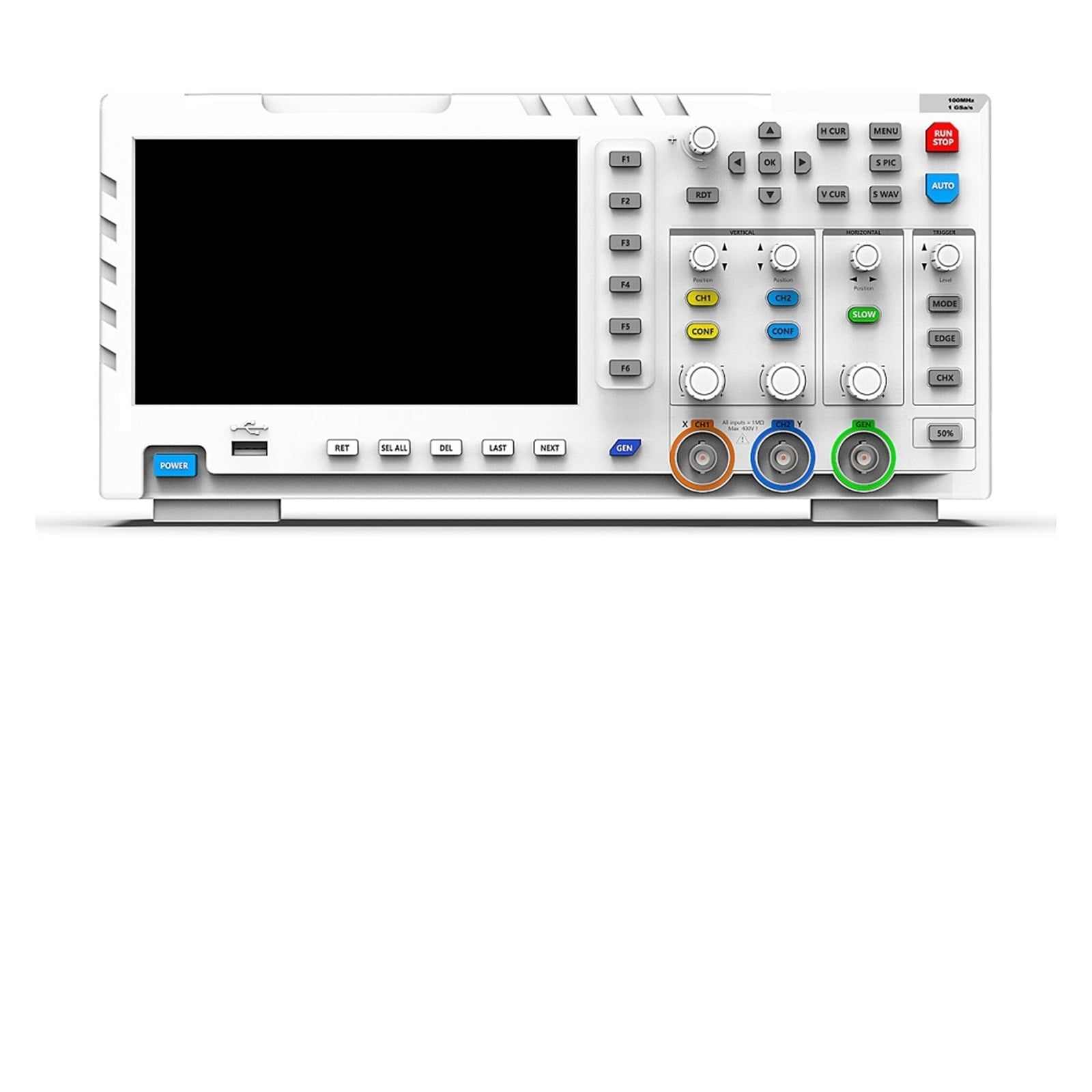

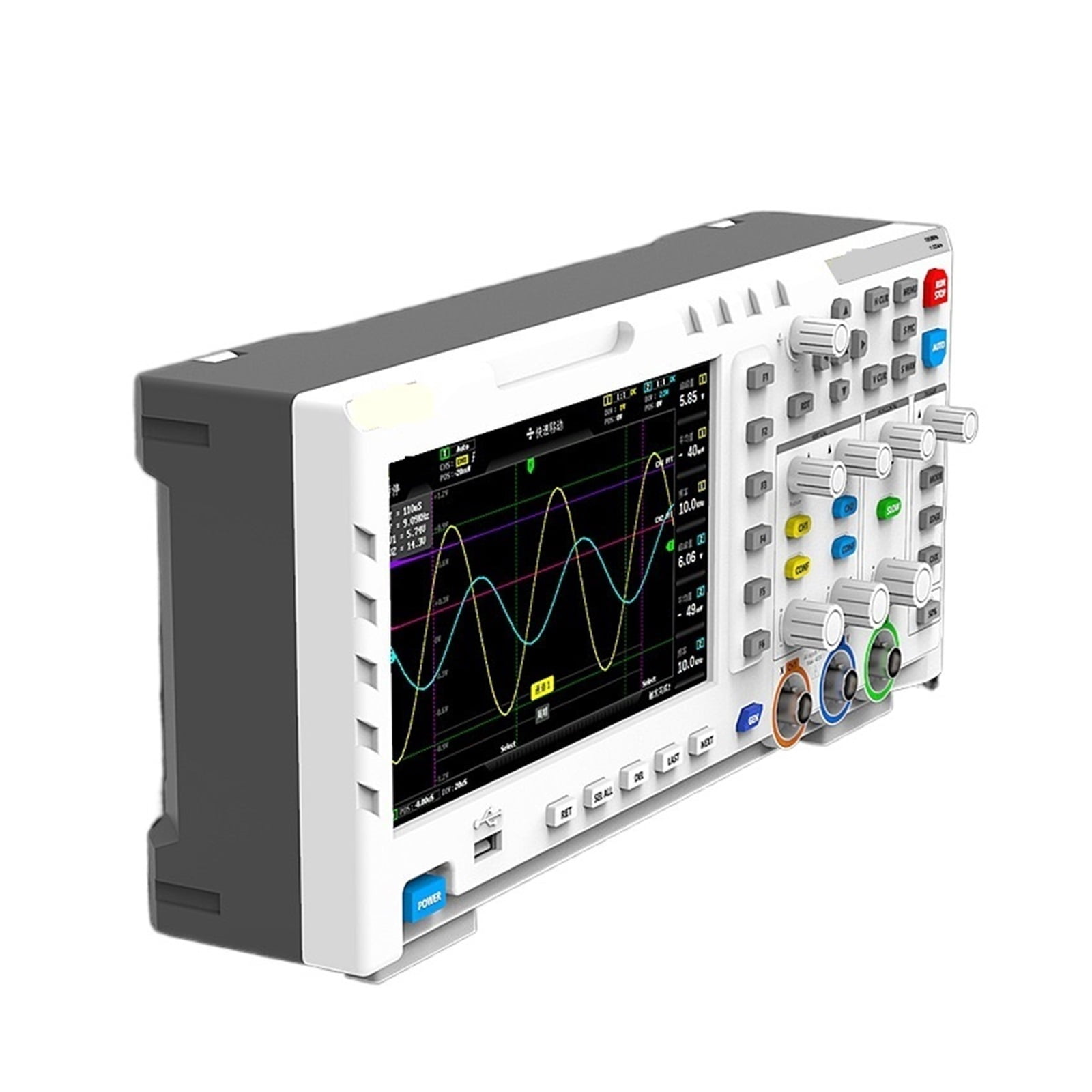

1014D Desktop Oscilloscope 100MHZ*2 1GS/s 2 In 1 Dual Channel Digital Oscilloscope 10MHZ Signal Generator ,Professional Designed

<p>Introduction:</p><p>Equipped with one button auto, which can display the measured waveform without tedious adjustment; display high-definition LCD with 7-inch 800 * 480 resolution;</p><p>Cursor measurement function, when manually reading amplitude and frequency parameters, it does not need to read the background scale unit and quantity, and it does not need to convert to directly get peak to peak and frequency Extremely convenient screen capture and waveform storage function, built-in 1GB storage space, can store up to 1000 screen capture pictures + 1000 groups of waveform data, the storage process is simple and fast, save the current waveform with only one click, no cumbersome prompts and choices to save the current data, very convenient;</p><p>Powerful waveform image manager, support thumbnail browsing, view, view details The functions of page turning, deleting and waveform enlarging, reducing and moving are convenient for secondary analysis. The fuselage is equipped with USB interface, which can be connected with the computer to realize the sharing of its own screen capture pictures and the computer, which is convenient for secondary analysis; </p><p></p><p>Specifications:</p><p>Material: ABS</p><p>Ana-log band width: 100MHz * 2</p><p>Number of channels: 2 channels</p><p>Maximum real time sampling rate: 1GSa/s</p><p>Vertical sensitivity: 50 mV/div ~ 500 V/div</p><p>Horizontal time base range: 50S/div ~ 10nS/div</p><p></p><p>desktop oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

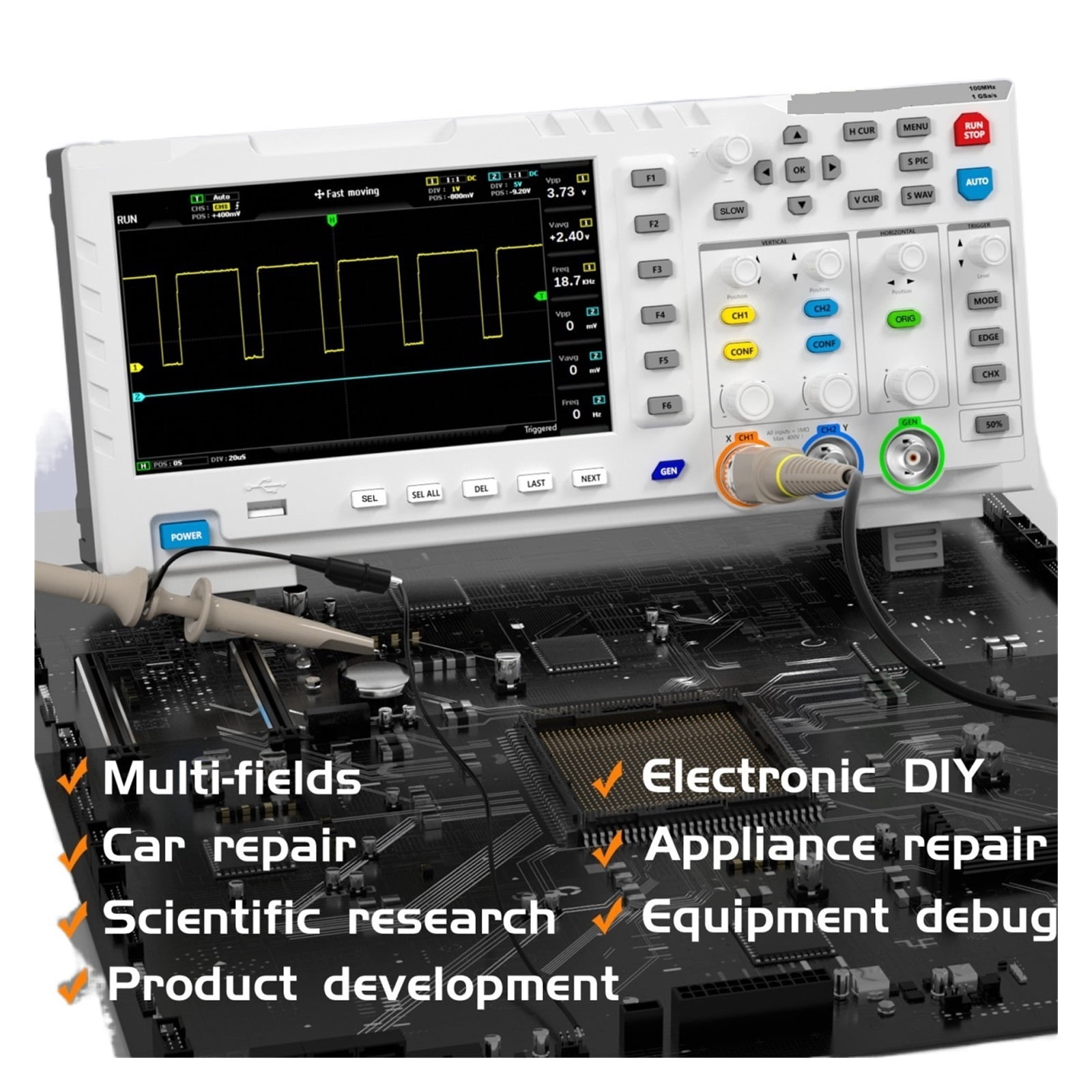

• It has comprehensive functions and high practicability.It is a cost-effective dual channel desktop oscilloscope for the maintenance industry and R & D industry
• The oscilloscope has a realtime sampling rate of 1GSa s and 100MHz 2 analog bandwidth;
• Complete trigger function (single time / normal / automatic), both for periodic analog signal and aperiodic digital signal can be used freely;
• All signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals;
• The built-in high-voltage protection module can continuous voltage.Large time base scrolling mode, which can monitor slow level changes;
